KORATHERM HORIZONTAL

Design radiators with horizontally aligned profiles and bottom connection

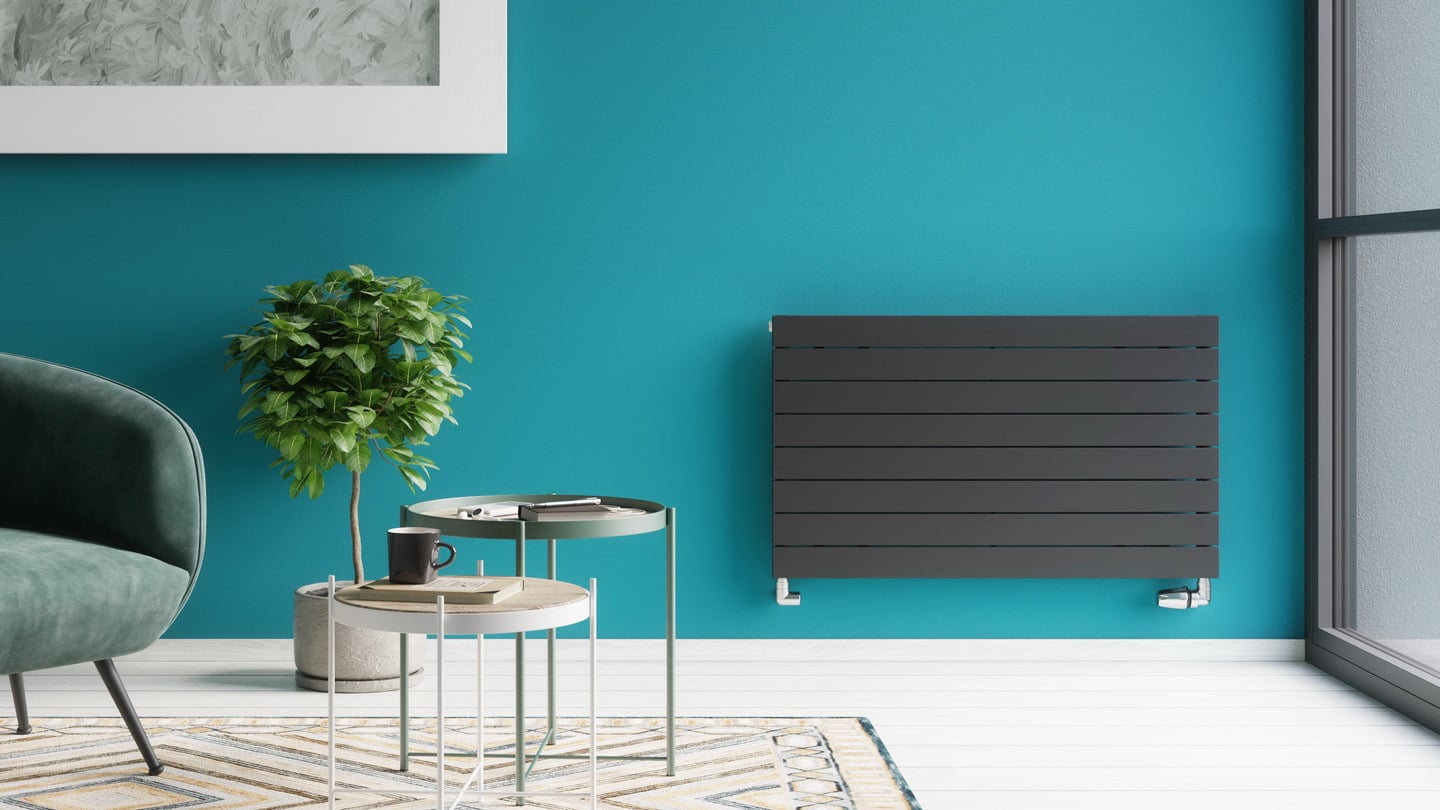

Design radiator KORATHERM HORIZONTAL represents thanks to its heat output a comfortable alternative to a conventional panel radiator. An extensive range of colours and its individual appearance with a characteristic line-design of heating profiles naturally challenges it to be integrated into any modern interior. It is designed for two-pipe pressurized heating systems, the heating profiles are aligned horizontally. The connection to the heating system is bottom from the bottom down with connecting pitch derived from the length L (example of product code K11H). It is equipped with 2 bottom connections with inside thread G½, an air vent and a blanking plug with G½ thread. Type 10 is delivered with a solid top cover, types 11, 20, 21 and 22 with a top grill. KORADO now offers also towel hangers and pegs which extend the practical use of KORATHERM design radiators.

Show full text
length from 500 to 3000 mm

length from 500 to 3000 mm

height from 144 to 958 mm

height from 144 to 958 mm

heat output from 100 to 4040 W

heat output from 100 to 4040 W

bottom to bottom connection

bottom to bottom connection

KORATHERM HORIZONTAL we offer these in 561 alternatives

Filter by parameters

Selection of dimensions

Enter required dimensions.

Heat output (For professionals)

t1: 75 °C
t2: 65 °C
ti: 20 °C
ΔT: 50 °C

The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)

Select colour

Basic white

The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.

Leave white

Free of charge

KORADO colour card

20 %

RAL colour card

30 %

Select alternative

Select all
Dimensions (H × L × D)
mm
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
watt
Type
Color
Code for ordering
Your selection
Dimensions (H × L × D) (mm)
144 × 500 × 61
Heat output (watt)
100
Type
10
Color
White
Code for ordering
K10H014050-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 600 × 61
Heat output (watt)
119
Type
10
Color
White
Code for ordering
K10H014060-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 700 × 61
Heat output (watt)
139
Type
10
Color
White
Code for ordering
K10H014070-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 800 × 61
Heat output (watt)
159
Type
10
Color
White
Code for ordering
K10H014080-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 900 × 61
Heat output (watt)
179
Type
10
Color
White
Code for ordering
K10H014090-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 1000 × 61
Heat output (watt)
199
Type
10
Color
White
Code for ordering
K10H014100-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 1100 × 61
Heat output (watt)
219
Type
10
Color
White
Code for ordering
K10H014110-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 1200 × 61
Heat output (watt)
239
Type
10
Color
White
Code for ordering
K10H014120-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 1400 × 61
Heat output (watt)
279
Type
10
Color
White
Code for ordering
K10H014140-00-10
Your selection
Dimensions (H × L × D) (mm)
144 × 1600 × 61
Heat output (watt)
318
Type
10
Color
White
Code for ordering
K10H014160-00-10

Accessories

Title Description Code
Towel hanger for KORATHERM 370 - Z-D035
Designed for use with all models of design radiators KORATHERM in the VERTIKAL and HORIZONTAL version. Length 370 mm.
Z-D035
Towel hanger for KORATHERM 518 - Z-D036
Designed for use with all models of design radiators KORATHERM in the VERTIKAL and HORIZONTAL version. Length 518 mm.
Z-D036
Towel peg for KORATHERM - Z-D038
Designed for use with all models of design radiators KORATHERM in the VERTIKAL and HORIZONTAL version.
Z-D038

Download or save your selection

Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.

Send by e-mail
Copy link

Heat output and technical information

Technical Data

KORATHERM HORIZONTAL | koratherm_horizontal-01.png
H: Height (mm) 144, 218, 366, 514, 588, 662, 884, 958
L: Length (mm) 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2300, 2600, 3000
Depth (mm)
Type 10 62 mm
Type 11 62 mm
Type 20 74 mm
Type 21 74 mm
Type 22 117 mm
Highest allowed working temperature (°C) 110 °C
Highest allowed working pressure 4 bar
Connecting thread G 1/2" inside
Connecting pitch h = L - 30 mm

Heat output

Type 10 Type 11 Type 20 Type 21 Type 22
Q [W] Height [mm]
Length (mm) 144 218 366 514 588 662 884 958
500 100 133 198 264 298 333 449 491
600 119 160 237 316 357 400 539 589
700 139 186 277 369 417 466 629 687
800 159 213 316 422 476 533 718 786
900 179 239 356 474 536 599 808 884
1000 199 266 395 527 595 666 898 982
1100 219 293 435 580 655 733 988 1080
1200 239 319 474 632 714 799 1078 1178
1400 279 372 553 738 833 932 1257 1375
1600 318 426 632 843 952 1066 1437 1571
1800 358 479 711 949 1071 1199 1616 1768
2000 398 532 790 1054 1190 1332 1796 1964
2300 458 612 909 1212 1369 1532 2065 2259
2600 517 692 1027 1370 1547 1732 2335 2553
3000 597 798 1185 1581 1785 1998 2694 2946
Q [W] Height [mm]
Length (mm) 144 218 366 514 588 662 884 958
500 145 206 319 424 475 524 666 712
600 173 247 383 509 569 629 799 854
700 202 288 447 594 664 734 932 996
800 231 329 510 678 759 838 1066 1138
900 260 370 574 763 854 943 1199 1281
1000 289 411 638 848 949 1048 1332 1423
1100 318 452 702 933 1044 1153 1465 1565
1200 347 493 766 1018 1139 1258 1598 1708
1400 405 575 893 1187 1329 1467 1865 1992
1600 462 658 1021 1357 1518 1677 2131 2277
1800 520 740 1148 1526 1708 1886 2398 2561
2000 578 822 1276 1696 1898 2096 2664 2846
2300 665 945 1467 1950 2183 2410 3064 3273
2600 751 1069 1659 2205 2467 2725 3463 3700
3000 867 1233 1914 2544 2847 3144 3996
Q [W] Height [mm]
Length (mm) 144 218 366 514 588 662 884 958
500 159 220 334 446 503 560 738 800
600 191 263 400 535 604 672 886 959
700 223 307 467 624 704 784 1033 1119
800 254 351 534 714 805 896 1181 1279
900 286 395 600 803 905 1008 1328 1439
1000 318 439 667 892 1006 1120 1476 1599
1100 350 483 734 981 1107 1232 1624 1759
1200 382 527 800 1070 1207 1344 1771 1919
1400 445 615 934 1249 1408 1568 2066 2239
1600 509 702 1067 1427 1610 1792 2362 2558
1800 572 790 1201 1606 1811 2016 2657 2878
2000 636 878 1334 1784 2012 2240 2952
2300 731 1010 1534 2052 2314 2576
2600 827 1141 1734 2319 2616 2912
3000 954 1317 2001 2676 3018
Q [W] Height [mm]
Length (mm) 144 218 366 514 588 662 884 958
500 209 291 436 564 624 680 837 886
600 250 349 523 677 748 816 1004 1063
700 292 407 610 790 873 952 1172 1240
800 334 465 697 902 998 1088 1339 1417
900 375 523 784 1015 1122 1224 1507 1594
1000 417 581 871 1128 1247 1360 1674 1771
1100 459 639 958 1241 1372 1496 1841 1948
1200 500 697 1045 1354 1496 1632 2009 2125
1400 584 813 1219 1579 1746 1904 2344 2479
1600 667 930 1394 1805 1995 2176 2678 2834
1800 751 1046 1568 2030 2245 2448 3013
2000 834 1162 1742 2256 2494 2720
2300 959 1336 2003 2594 2868 3128
2600 1084 1511 2265 2933 3242
3000 1251 1743 2613 3384
Q [W] Height [mm]
Length (mm) 144 218 366 514 588 662 884 958
500 267 375 604 777 854 927 1119 1176
600 320 449 724 932 1025 1112 1343 1411
700 374 524 845 1088 1196 1297 1567 1646
800 427 599 966 1243 1366 1482 1790 1881
900 481 674 1086 1399 1537 1668 2014 2116
1000 534 749 1207 1554 1708 1853 2238 2351
1100 587 824 1328 1709 1879 2038 2462 2586
1200 641 899 1448 1865 2050 2224 2686 2821
1400 748 1049 1690 2176 2391 2594 3133 3291
1600 854 1198 1931 2486 2733 2965
1800 961 1348 2173 2797 3074 3335
2000 1068 1498 2414 3108 3416 3706
2300 1228 1723 2776 3574 3928
2600 1388 1947 3138 4040
3000 1602 2247 3621

Overview of Types

Type 10
Type 11
Type 20
Type 21
Type 22

Types of Connection

Bottom connection
KORATHERM HORIZONTAL - connection Bottom connection
