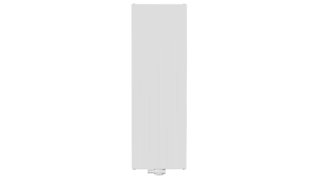

RADIK LINE PREMIUM
Vertically aligned panel radiator with variable connection and flat front panel with fine vertical grooves
Vertically aligned panel radiator with variable connection and flat front panel with fine vertical grooves The model RADIK LINE PREMIUM is a vertically aligned radiator with a flat front panel with fine vertical grooves. The dimensions of this model make it ideal for use in tight or atypical rooms. Its design enables it to be connected primarily from the middle bottom or side bottom to a pressurised heating system. Alternatively, you can also use its top middle and top side connections. There are no hangers welded on the back side therefore the radiator is supplied with special brackets, guaranteeing an easy, fast and safe mounting. All radiator types are fitted with side covers.
length from 400 to 700 mm
height from 1600 to 2200 mm
heat output from 795 to 3024 W
bottom middle connection, bottom edge connection, top centre connection, top edge connection
RADIK LINE PREMIUM we offer these in 64 alternatives
Filter by parameters
Selection of dimensions
Enter required dimensions.
Heat output (For professionals)
The heat output of the radiator should cover the specified heat losses of the heated room, which are calculated by the designer. t1 – temperature of input water entering the radiator t2 – temperature of output water exiting the radiator ti – relative air temperature (design temperature of air in the room) (Temperatures t1 and t2 are based on the design documentation of the heating system or the selected heat source)
Select colour
The basic colour is RAL 9016 white, other colours are subject to a surcharge.
It is possible to deviate the colour in the colour chart compared to the colour of the heating element.
Leave white
Free of charge
KORADO colour card
30 %
RAL colour card
40 %
Select alternative
|
Select all
|
Dimensions (H × L × D)
mm
|
Heat output
Tepelný výkon radiátoru má pokrýt stanovené tepelné ztráty vytápěné místnosti, které jsou vypočteny projektantem.
watt
|
Type
|
Color
|
Code for ordering
When ordering a coloured version please specify the colour code in the remark. The colour code is not a part of the article code.
|
|---|---|---|---|---|---|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1600 × 400 × 49
|
Heat output
(watt)
795
|
Type
|
Color
|
Code for ordering
11160040-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1600 × 500 × 49
|
Heat output
(watt)
994
|
Type
|
Color
|
Code for ordering
11160050-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1600 × 600 × 49
|
Heat output
(watt)
1192
|
Type
|
Color
|
Code for ordering
11160060-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1600 × 700 × 49
|
Heat output
(watt)
1391
|
Type
|
Color
|
Code for ordering
11160070-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1800 × 400 × 49
|
Heat output
(watt)
867
|
Type
|
Color
|
Code for ordering
11180040-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1800 × 500 × 49
|
Heat output
(watt)
1084
|
Type
|
Color
|
Code for ordering
11180050-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1800 × 600 × 49
|
Heat output
(watt)
1300
|
Type
|
Color
|
Code for ordering
11180060-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
1800 × 700 × 49
|
Heat output
(watt)
1517
|
Type
|
Color
|
Code for ordering
11180070-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
2000 × 400 × 49
|
Heat output
(watt)
935
|
Type
|
Color
|
Code for ordering
11200040-WUL0010
|
|
Your selection
|
Dimensions (H × L × D)
(mm)
2000 × 500 × 49
|
Heat output
(watt)
1169
|
Type
|
Color
|
Code for ordering
11200050-WUL0010
|
Accessories
| Title | Description | Code | ||
|---|---|---|---|---|
|
Intended for cleaning all radiators KORADO.
|
Z-D029
|
Download or save your selection
Now save your chosen variant to you so that you can pass it on to the seller and thus speed up your purchase.
You will find the list of sellers in the next step.
Heat output and technical information
Technical Data
| H: Height (mm) | 1600, 1800, 2000, 2200 |
| L: Length (mm) | 400, 500, 600, 700 |
| Depth (mm) | |
| Type 22 | 102 mm |
| Type 11 | 49 mm |
| Type 20 | 79 mm |
| Type 21 | 79 mm |
| Highest allowed working temperature (°C) | 110 °C |
| Highest allowed working pressure | 10 bar |
| Connecting thread | G 1/2" inside |
| Connecting pitch | 50 mm |
Heat output
| Q [W] | Height [mm] | |||
|---|---|---|---|---|
| Length (mm) | 1600 | 1800 | 2000 | 2200 |
| 400 | 1343 | 1477 | 1605 | 1728 |
| 500 | 1679 | 1846 | 2006 | 2160 |
| 600 | 2015 | 2215 | 2407 | 2592 |
| 700 | 2351 | 2584 | 2808 | 3024 |
| Q [W] | Height [mm] | |||
|---|---|---|---|---|
| Length (mm) | 1600 | 1800 | 2000 | 2200 |
| 400 | 795 | 867 | 935 | 999 |
| 500 | 994 | 1084 | 1169 | 1249 |
| 600 | 1192 | 1300 | 1402 | 1499 |
| 700 | 1391 | 1517 | 1325 | 1749 |
| Q [W] | Height [mm] | |||
|---|---|---|---|---|
| Length (mm) | 1600 | 1800 | 2000 | 2200 |
| 400 | 974 | 1064 | 1147 | 1224 |
| 500 | 1218 | 1330 | 1434 | 1530 |
| 600 | 1461 | 1596 | 1721 | 1836 |
| 700 | 1705 | 1862 | 2008 | 2142 |
| Q [W] | Height [mm] | |||
|---|---|---|---|---|
| Length (mm) | 1600 | 1800 | 2000 | 2200 |
| 400 | 1128 | 1231 | 1322 | 1401 |
| 500 | 1410 | 1539 | 1653 | 1752 |
| 600 | 1692 | 1847 | 1983 | 2102 |
| 700 | 1974 | 2155 | 2314 | 2452 |
Overview of Types
Type 22
Type 11
Type 20
Type 21
Types of Connection
Bottom middle
Side bottom
Side top
Middle bottom
Additional professional information
